Multicast UDP Out:

Close computer firewall and antivirus software

Install Tsreader and VLC Player on the computer

Encoder output port directly connected to computer,Please note encoder out port and RJ45 cable bitrate

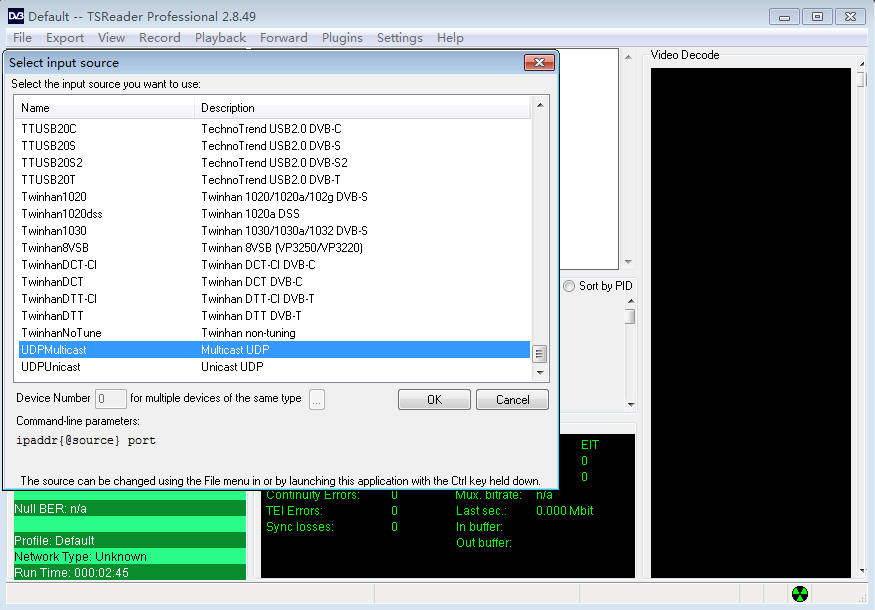

Open Tsreader,,click menu “File”—>”Select Source”,select Multicast UDP

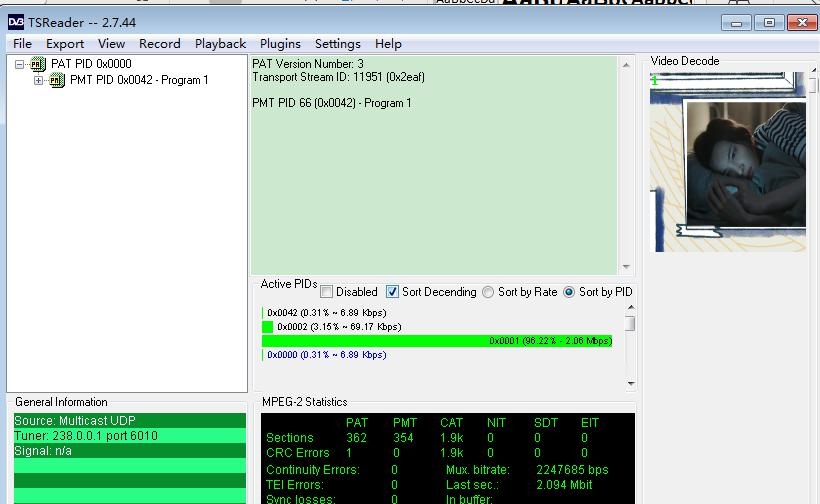

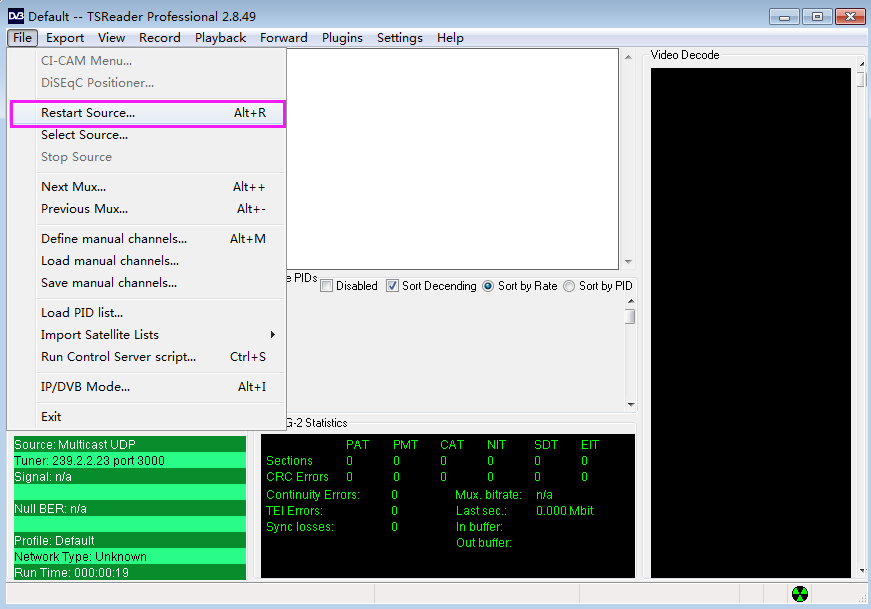

Click “File”—>”Restart Source”,input the udp stream,select the PC IP,click OK,it will show stream

Play the udp stream on VLC(Format is udp://@238.0.0.1:6010)

Do all above steps,if the udp still not output,please change another PC,do the same steps again.



Unicast UDP Out:

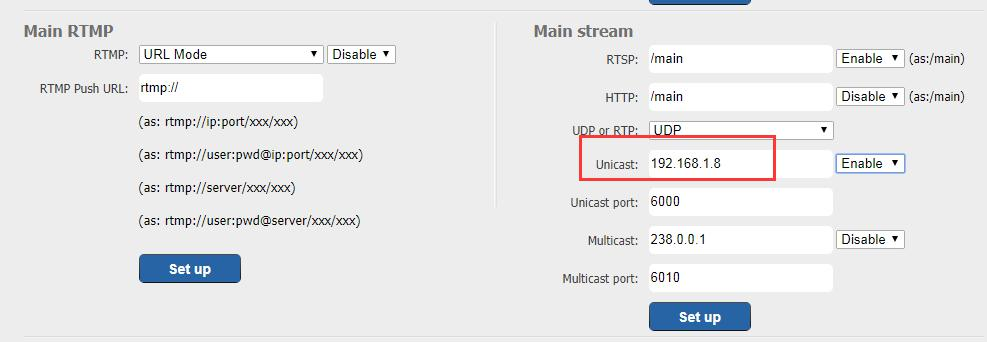

The encoder Unicast udp address,please insert the PC IP address(the pc is which you need play the stream on it)

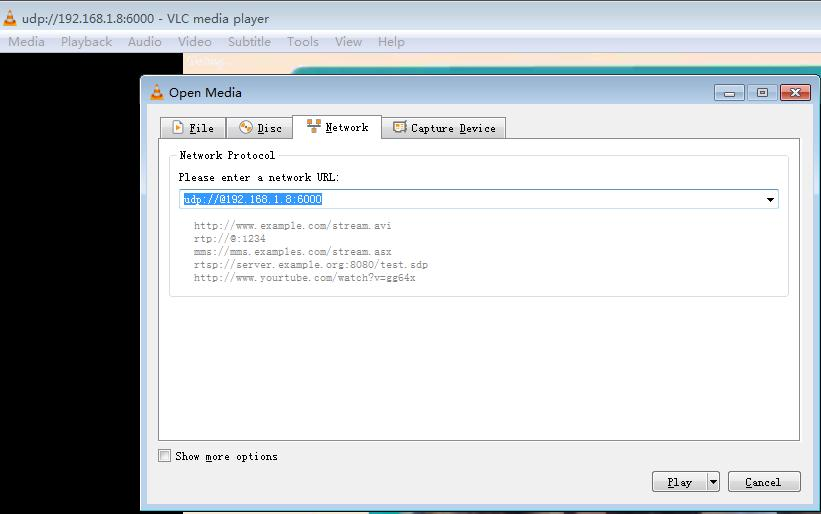

Play the udp stream on VLC（Format is udp://@192.168.1.8:6000）
