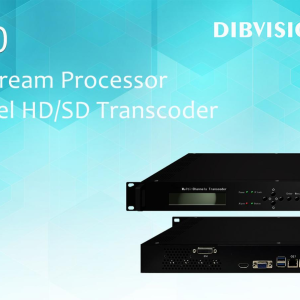

Anystream450 50 channels IP to IP H.264 H.265 IPTV Transcoder

Description

Anystream450, a professional appliance for live content transcoding solution, it provides high-density and scalability for traditional broadcast over cable, IPTV, DTH and DTTV, as well as for multiscreen applications.

For satellite, terrestrial, cable and multiscreen applications, the Anystream450 has become an ideal solution for operator to provide high quality video transcoding. It can transcode a mix of channels independent of their codec (MPEG-2, MPEG-4 AVC or HEVC), resolution (HD, SD and low resolution) and frame rate (up to 60 fps). HLS output supports multiple resolutions and bitrates in one address, which used for OTT Live system. It can automatically switch resolution based on the terminal’s network to ensure the users receive high-quality and smooth videos.

Video can be delivered to an external packager, or it can be internally scrambled and packaged in the Apple® HLS, Microsoft® Smooth Streaming and MPEG-DASH formats. Anystream450 provides the high bandwidth efficiency on the market, and the best video quality to end users.

Features

• High density 1-RU platform can transcode up to 50*SD or 24*720p or 15*Full HD profiles
• Creates simultaneous High,Medium, and Low bitrate streams (profiles) of MultiScreen IPTV application
• H.265/HEVC Main Profiles Level 5.1
• Baseline, main profile & high profile with variable GOP
• Picture-in-picture (PIP) operation supported
• Default HD-to-SD down; SD-to-HD up optional
• Support RTMP, HTTP Live Streaming and HLS encrypted function, Pull/Push HTTP/RTSP, RTMP, UDP, SDP, SRT protocol for input/out (HTTPS input only, RTMPS output only)
• Support UDP SPTS/MPTS input/output
• 1080i resolution supported for input/output
• Support MPEG-DASH,only for single bitrate, H264, AAC
• Support backup source and whole device backup (need two units)
• Flexible GOP structures with Reference-frame and B-frame edit
• High quality pre-processing including filtering, Deinterlacing,cross scaling, image insertion
• PCR correction to accurately correct several PCR of the input data
• Based on embedded Ubuntu Linux via flashdisk
• DVB Subtitle and Logo insertion
• Parameter template settings and imports
• TS parameter configuration: The output stream can be edited to change the program number, program name, supplier (for video output part), easy to identify end device
• Real-time dynamic monitoring of each transcoding channel operation
• Support multiple devices unified management
• Dual hot-swappable power supply
• Easy configuration via Web GUI
• Designed for secure 24*365 operation
