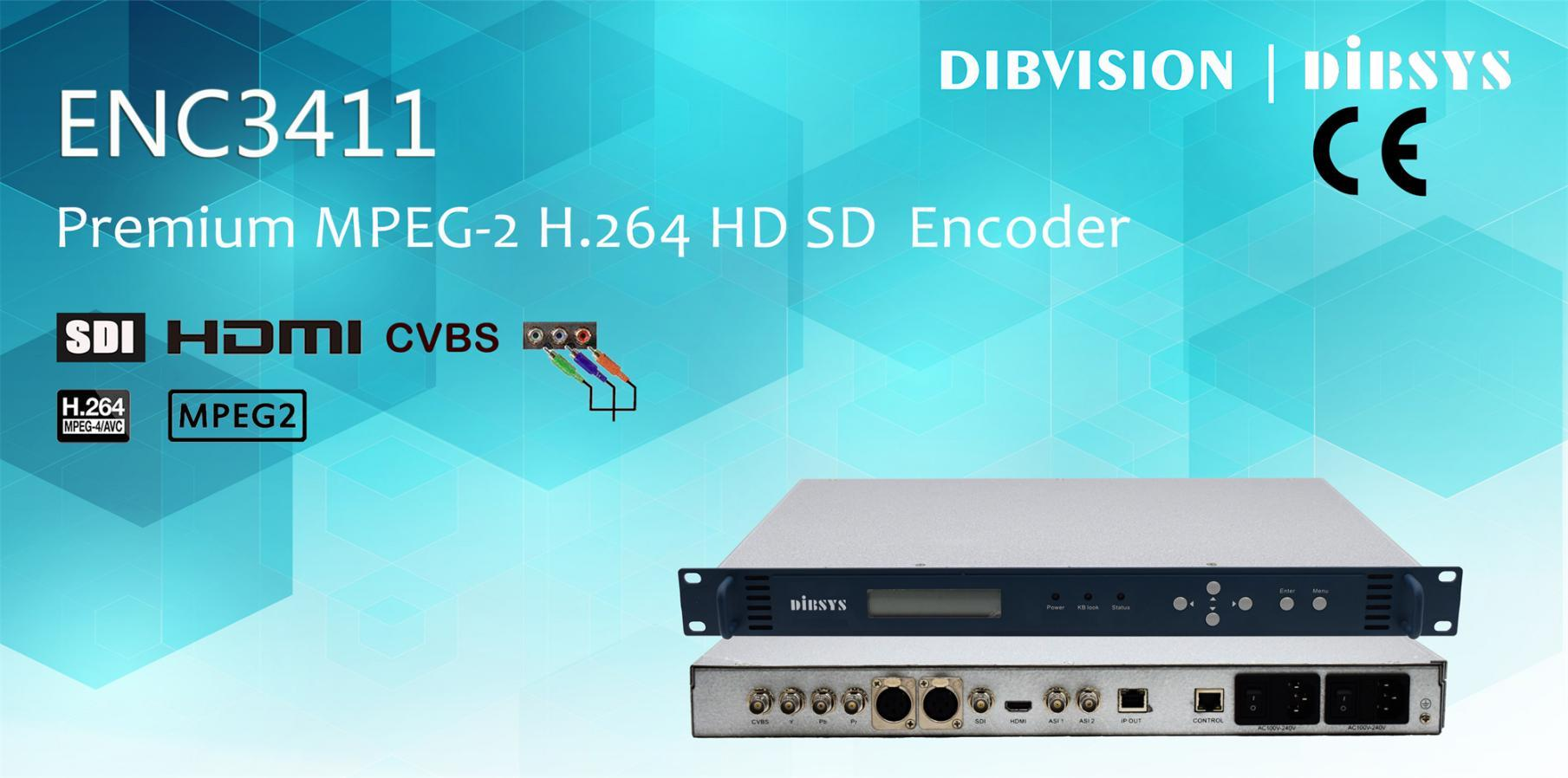

ENC3411 MPEG-2 H.264 HD SD Encoder

Description

ENC3411, hardware platform has been widely deployed for MPEG-2 and MPEG-4 AVC HD broadcasting applications. For telcos and other IP-based service providers, the encoder is highly bandwidth efficient VBR CBR encoding and native IP output make it possible to deliver exciting and competitive HD services.

Features

• Advanced MPEG-2 MP@ML4:2:0 and MPEG-4 AVC 4:2:0 (H.264) video encoding
• ASIC technologies which offer broadcast, video quality,
• generally video bitrate advised: SD about 1.2mbps,720p about 2mbps, 1080 about 6-8mbps for lowest bitrates
• HD-MI 1.3a interface, Auto detect the HD-MI input of resolutions
• Support the importation of SDI/HD-SDI, HD-MI, CVBS,YPbPr encoding
• Audio sampling Rates: 44.1 khz, 32khz, 48KHz、
• MPEG-1 Layer II, MPEG-2 AAC-LC, MPEG-4 AAC-LC,MPEG-2 HE-AAC, MPEG-4 HE-AAC audio encoding
• Supports unicast and multicast IP output UDP protocol as well as two identical ASI outputs
• WEB Management and local front panel
• Supports resolution: 1080i@50/59.94/60fps,720p@50/59.94/60fps, 480i, 576i

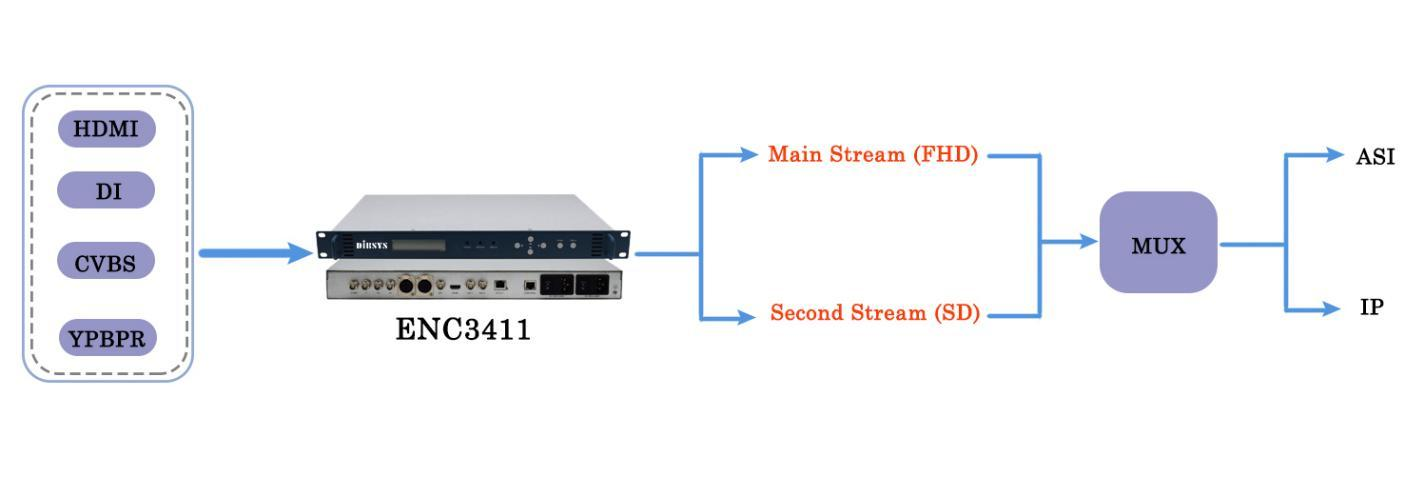

• DVB compliance with 2 streams output simultaneously:high (HD) and low resolution (SD) channels
• Built-in time base correction and video pre-processing
• Easy-to-Use System Management
• Passed the EU CE certification

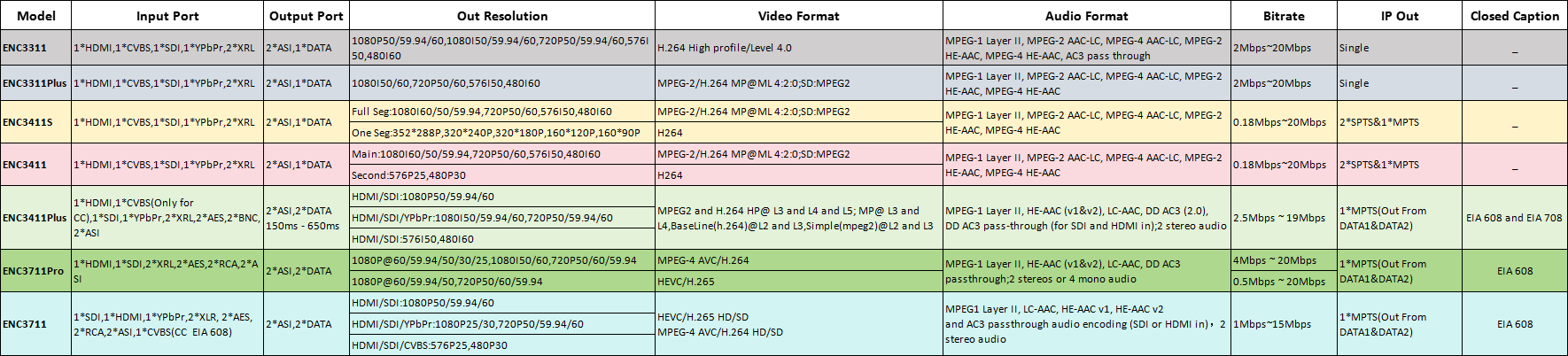

CHART

ENC3411S/ENC3411/ENC3711 Comparison
