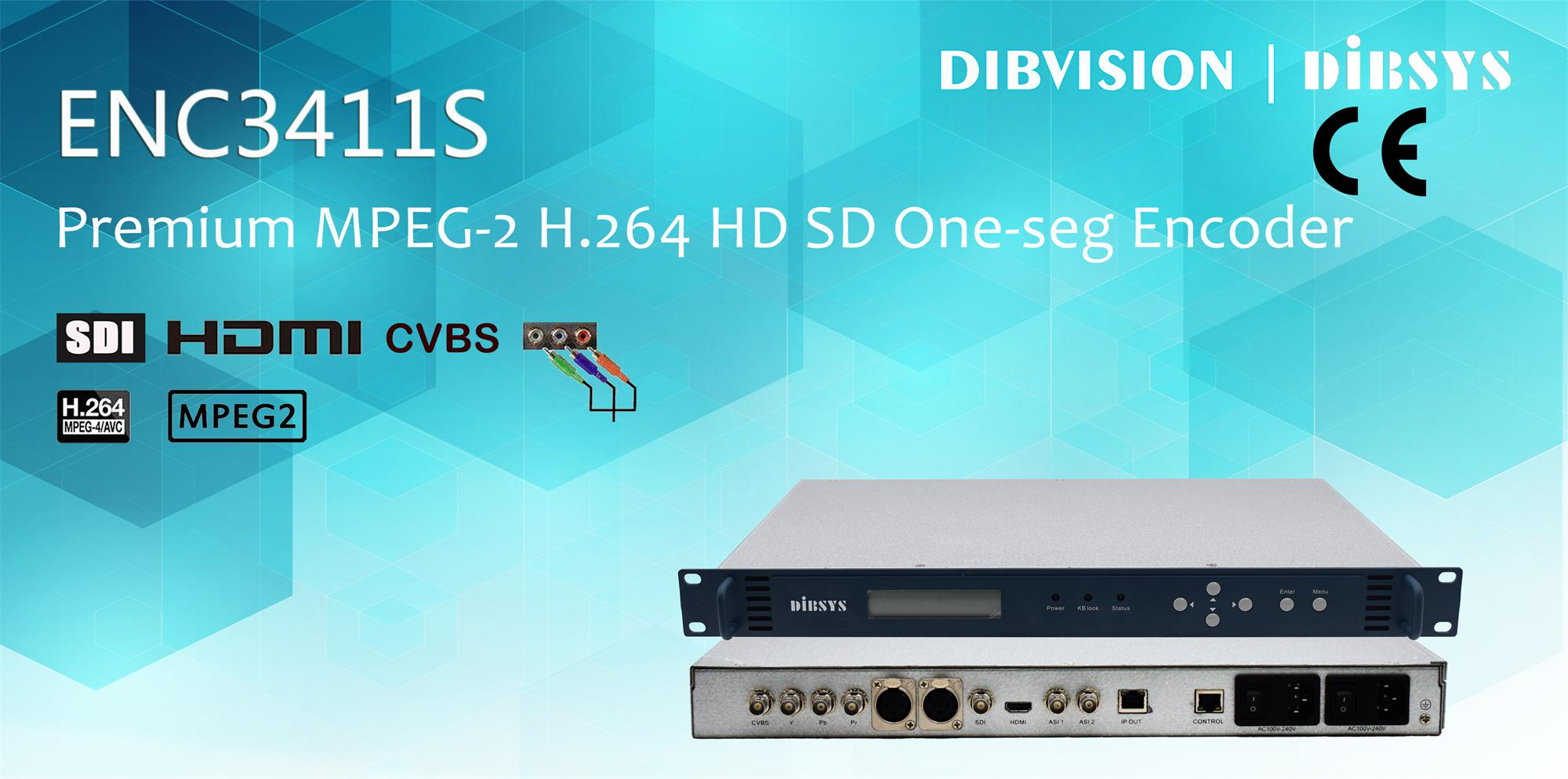

ENC3411S MPEG2 H264 1-Seg Encoder

Description

ENC3411S, premium MPEG-2/ H.264 encoder, this new professional HD SD video encoder for a solution to address the needs of early adopters of the premium TV standard, especially use in Multi-Audio channel MPEG-2 H.264 in High- End Cable TV and ISDB-Tb Application.

Features

• Advanced MPEG-2 MP@ML4:2:0 and MPEG-4 AVC 4:2:0 (H.264) video encoding
• ASIC technologies which offer broadcast, video quality, generally video bitrate advised: SD about 1.2mbps, 720p about 2mbps, 1080 about 6-8mbps for lowest bitrates
• HD-MI 1.3a interface, Auto detect the HD-MI input of resolutions
• Support the importation of SDI/HD-SDI, HD-MI, CVBS, YPbPr encoding
• Low resolution channels for applications such as picture-in-picture (PIP: One-seg for ISDB-Tb)
• Audio sampling Rates: 44.1 khz, 32khz, 48KHz
• MPEG-1 Layer II, MPEG-2 AAC-LC, MPEG-4 AAC-LC, MPEG-2 HE-AAC, MPEG-4 HE-AAC audio encoding
• Supports unicast and multicast IP output UDP protocol as well as two identical ASI outputs
• WEB Management and local front panel
• Supports resolution: 1080i@50/59.94/60fps, 720p@50/59.94/60fps, 480i, 576i
• DVB/ISDB-Tb compliance with 2 streams output simultaneously: for one-seg and full-seg
• Built-in time base correction and video pre-processing
• Easy-to-Use System Management
• Passed the EU CE certification

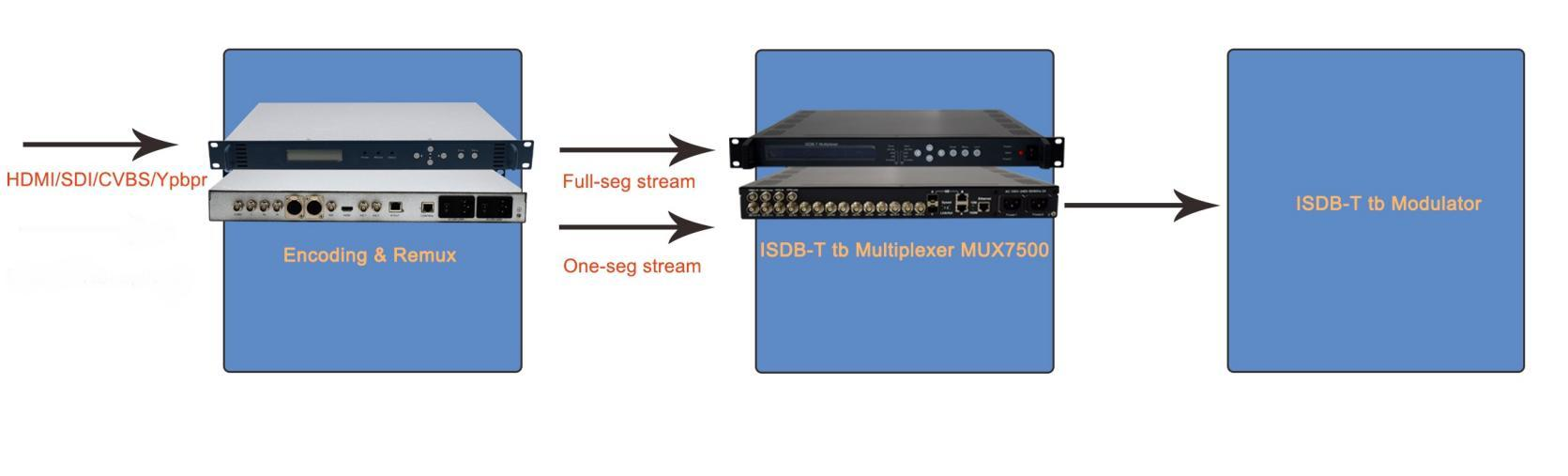

Main Application

ENC3411S/ENC3311/ENC3711 Comparison
