ENC3711Pro HEVC/H.264 HD ENCODER

Description

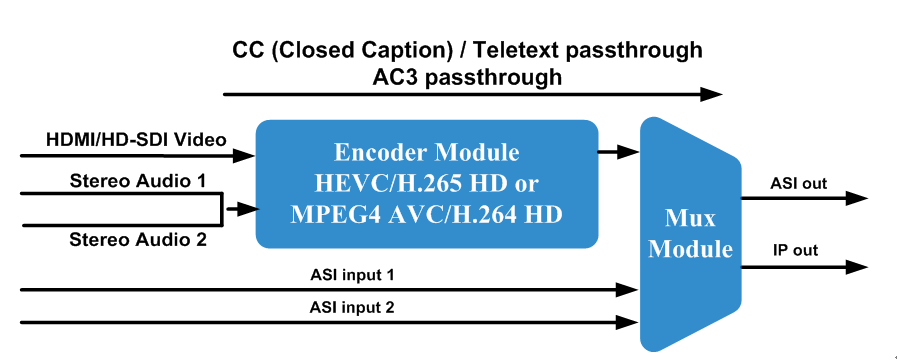

ENC3711Pro H.264/HEVC HD Encoder is the new broadcasting audio & video encoding device with powerful functionality. It is equipped with multiple video input interfaces (HDMI, HD-SDI) and audio input interfaces (HDMI, SDI, AES, RCA and XLR) to make it possible to compatible with different signal sources.

Multiple audio and video encoding formats are available to meet customers’ various requirements. It supports 2 stereo (4 mono) to mix with the video to form a stream output. The encoded program will finally output in TS through ASI/IP port.

ENC3711Pro is also featured with OSD (QR code, LOGO and Caption) insertion function and can display multiple elements at same time. Operator can insert advertisement picture, own LOGO, special QR code, Text content in encoding process independent of STB. It will bring more profit for product user.

Key Features

• Support HDMI or HD-SDI input
• Support OSD (QR code, LOGO and Caption) insertion
• HEVC/H.265 HD (with B frame to ensure high video compression ratio and bitrate stability) and MPEG-4 AVC/H.264 HD video encoding
• MPEG1 Layer II, HE-AAC (v1&v2), LC-AAC Audio encoding, DD AC3 audio pass through
• Support 2 stereos or 4 mono audio encoding
• Support 2 ASI input for re-mux
• Support ASI output and IP over UDP /RTP/RTSP output
• Support CC (closed caption) and Teletext
• LCD / keyboard control and web management

Datasheet：ENC3711 Pro PREMIUM H.264 HEVC HD ENCODER
