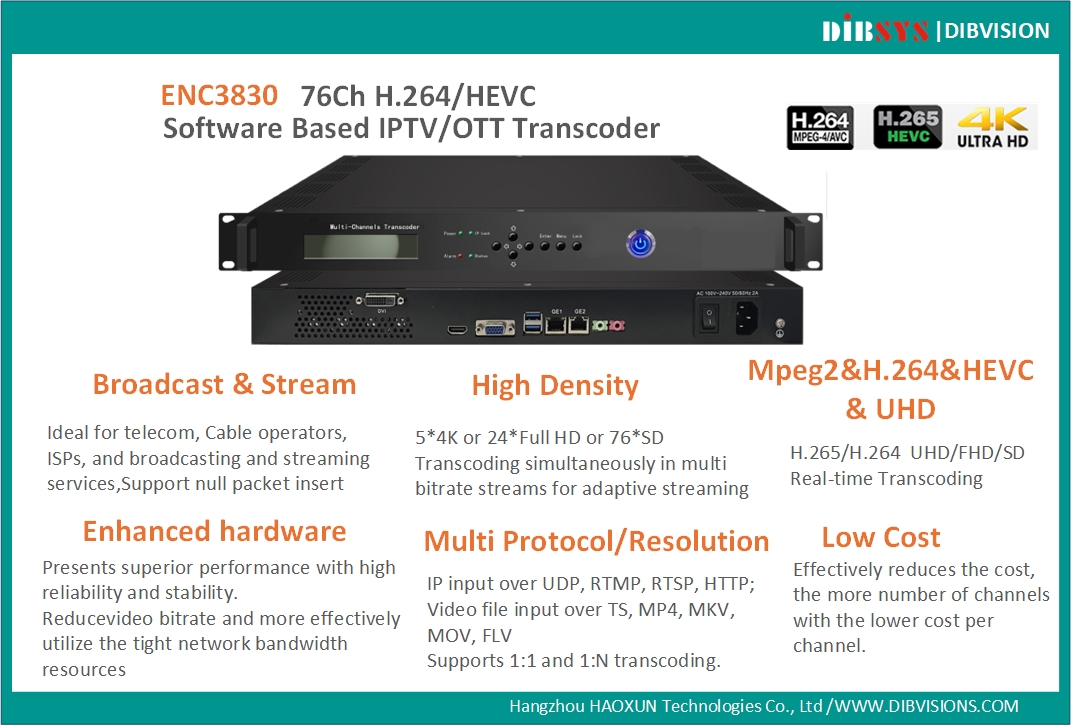

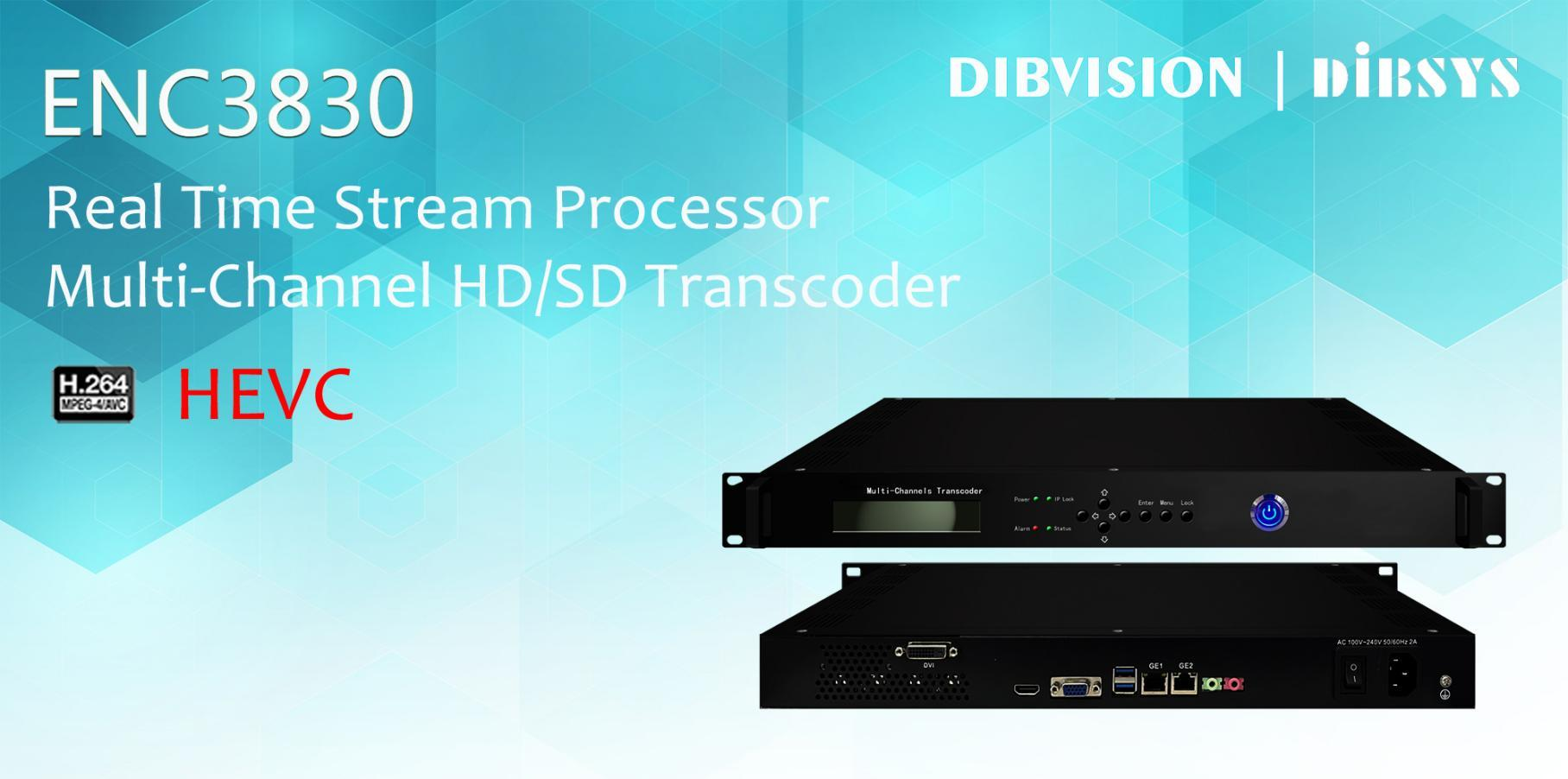

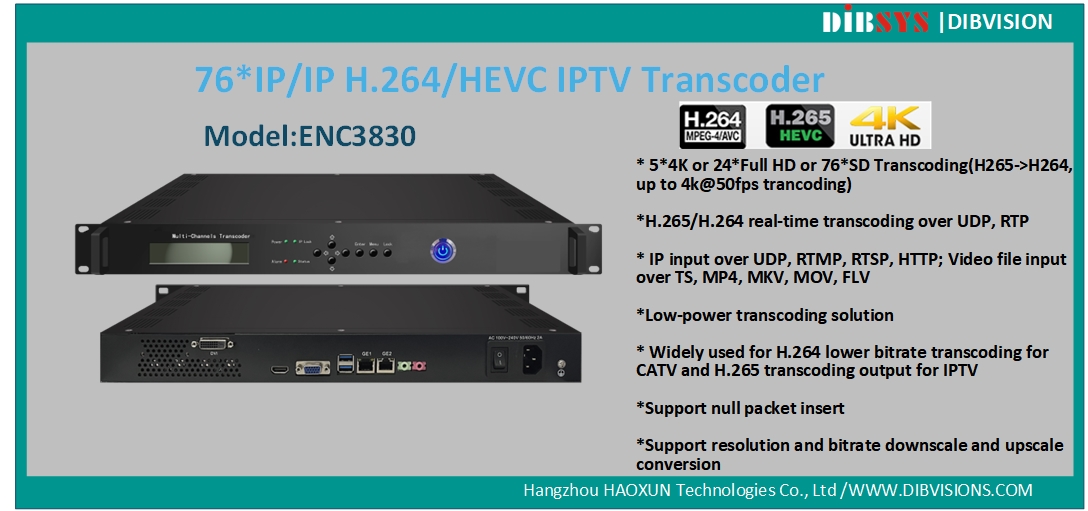

ENC3830 Multi-Channel Transcoder

Description

    With the number of video formats increasing fast, DTV operators require the ability to have a transcoding solution to simplify their headend architecture and to reduce the amount of headend equipment needed. To achieve this, they need products able to deal with both MPEG-4 AVC and HEVC video streams from different Sources.

    ENC3830 multi-channel transcoder supports to convert multiple video formats to H.264/H.265 based on software. It can transcode up to 76 channels SD or 24 HD channels MPEG- 4 AVC/H.265 live video and audio services for broadcast and Digital TV network front end center applications. With enhanced hardware, it presents superior performance with high reliability and stability. It is typically used to reduce video bitrate and more effectively utilize the tight network bandwidth resources.

Features

• Support multi-channel transcoding (Up to 76*SD /24*HD channels)
• IP input over UDP, RTMP, RTSP, HTTP; Video file input over TS, MP4, MKV, MOV, FLV
• IP SPTS output over UDP, RTMP
• Support convert one stream output by multiple protocols
• Video output in H.264/H.265 format
• Support resolution and bitrate downscale and upscale conversion
• Supports 4K transcoding,Output resolution supports 4K,1080P,1080I, 720P,576I, 480I
• Support multiple audio outputs
• Support null packet insert (for UDP out)
• Support DVB subtitles, CC(closed caption),teletext(developing)
• Support Insert text, LOGO,OSD(developing)
• Web-base GUI and LCD/Key button for easy management

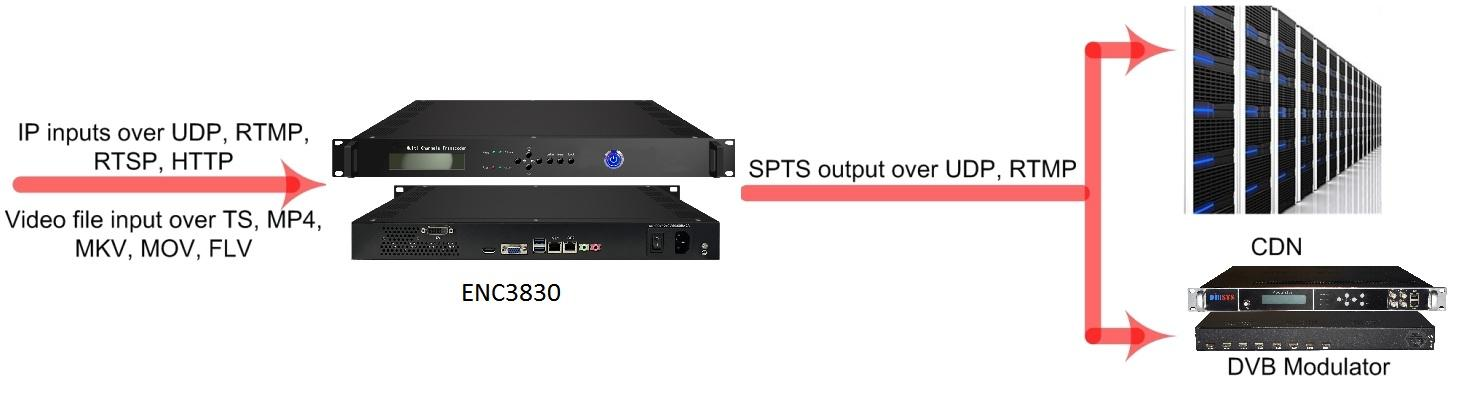

Application Example

Specifications

Test Data based on Balanced mode (for reference)
