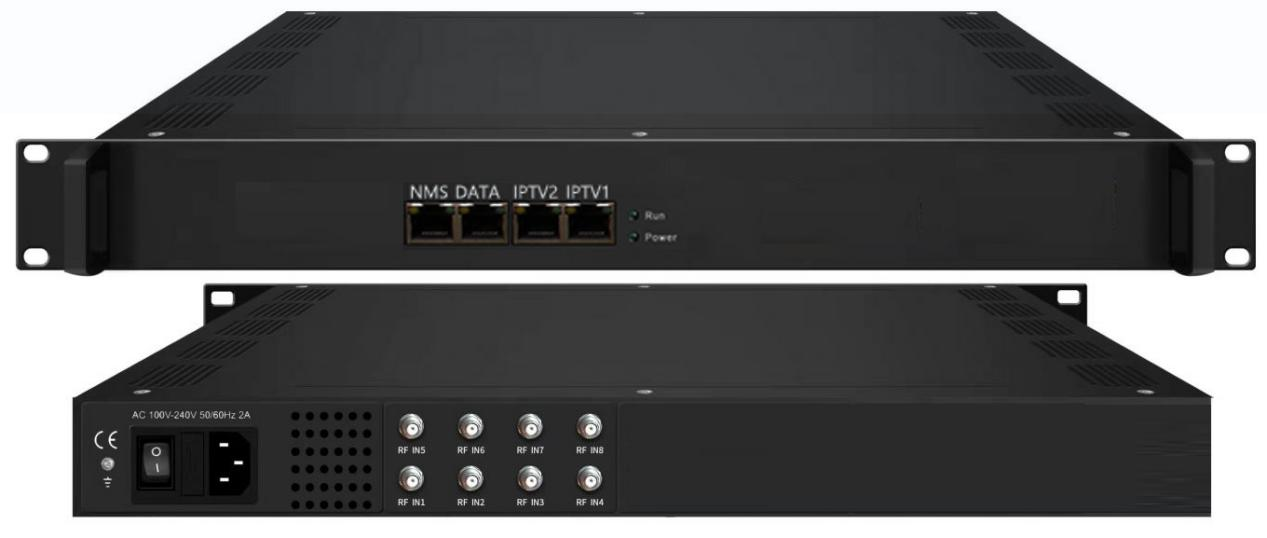

IRD1518SI 8/16/24 Tuner to Internet IP Gateway

Description

IRD1518SI 8/16/24 Tuner to Internet IP Gateway.It can support 3 cards,1 card support 8*Tuners.The tuner has 2 version,version1 is DVB-S/S2/S2X tuners,version2 is DVB-C/T/T2/ISDB-T Switchable tuners.The device it support URL IP input and out.

Features

• Support 8 tuners (DVB-S/S2/S2X or/and DVB-C/T/ISDB-T) input; 1 U chassis optional for 1/2/3 cards maximum for 8/16/24 tuner input; Each tuner card are working independently with its NMS and 1 GE Data port,IPTV1&IPTV2 Port
• IP input over UDP/RTP/RTSP/HTTP/HLS/SRT
• IP output over UDP/RTP/RTSP/HTTP/HLS/RTMP/SRT
• Up to 256 PIDs remapping per output channel
• Support PID re-mapping and pass-through
• Support Diseqc function
• Supports network protocol output and can be used for point-to-point transmission
• Support Biss decryption, each tuner support maximum 64 BISS key decryption
• Web-based NMS management

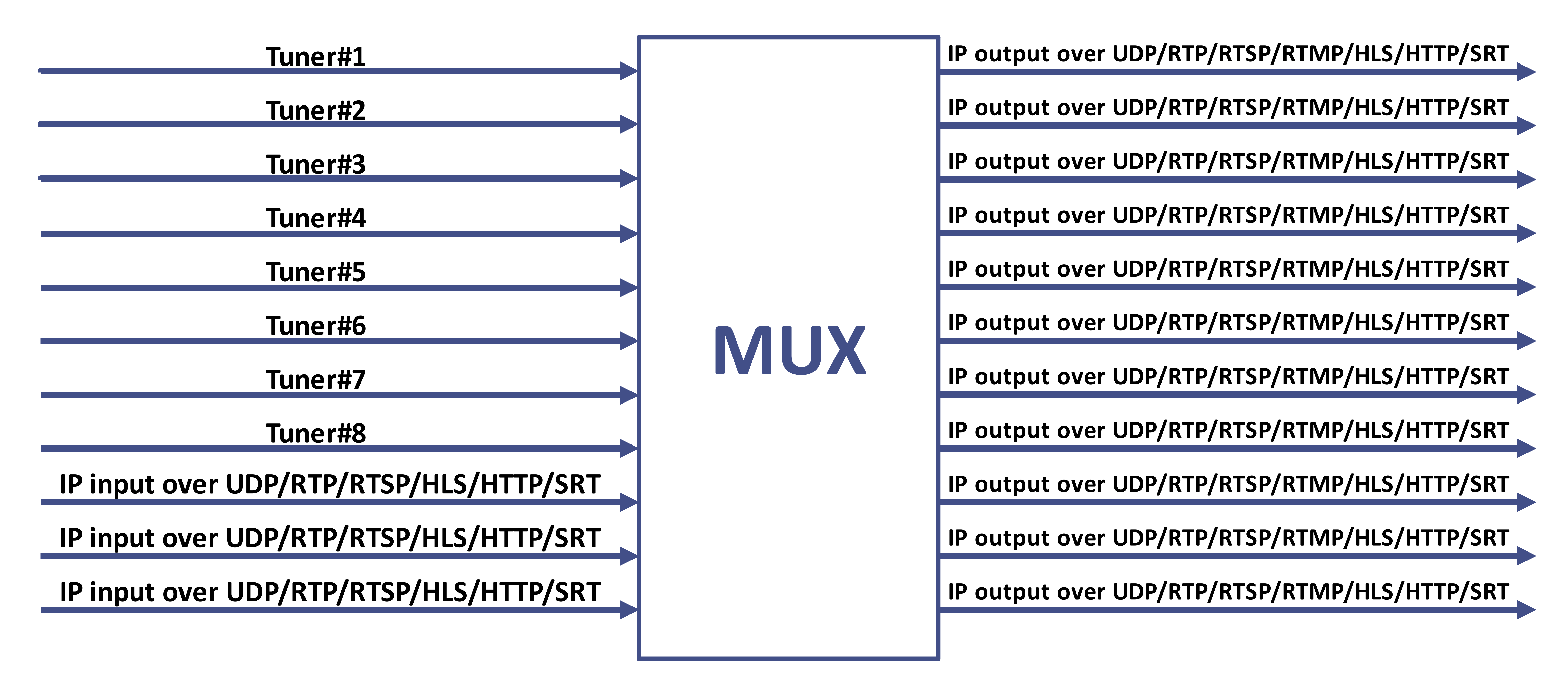

Inner Principle Chart (Per Card/8 Input)

Input/Output Interfaces

• 8 Tuner input (DVB-S/S2/S2X or/and DVB-C/T/T2/ISDB-T), optional 16/24tuners F-female type  Connecter
• IP input over UDP/RTP/RTSP/HTTP/HLS/SRT
• IP output over UDP/RTP/RTSP/HTTP/HLS/RTMP/SRT
• 100/1000Mself-adaption, unicast/multicast

URL Performance Test Table
