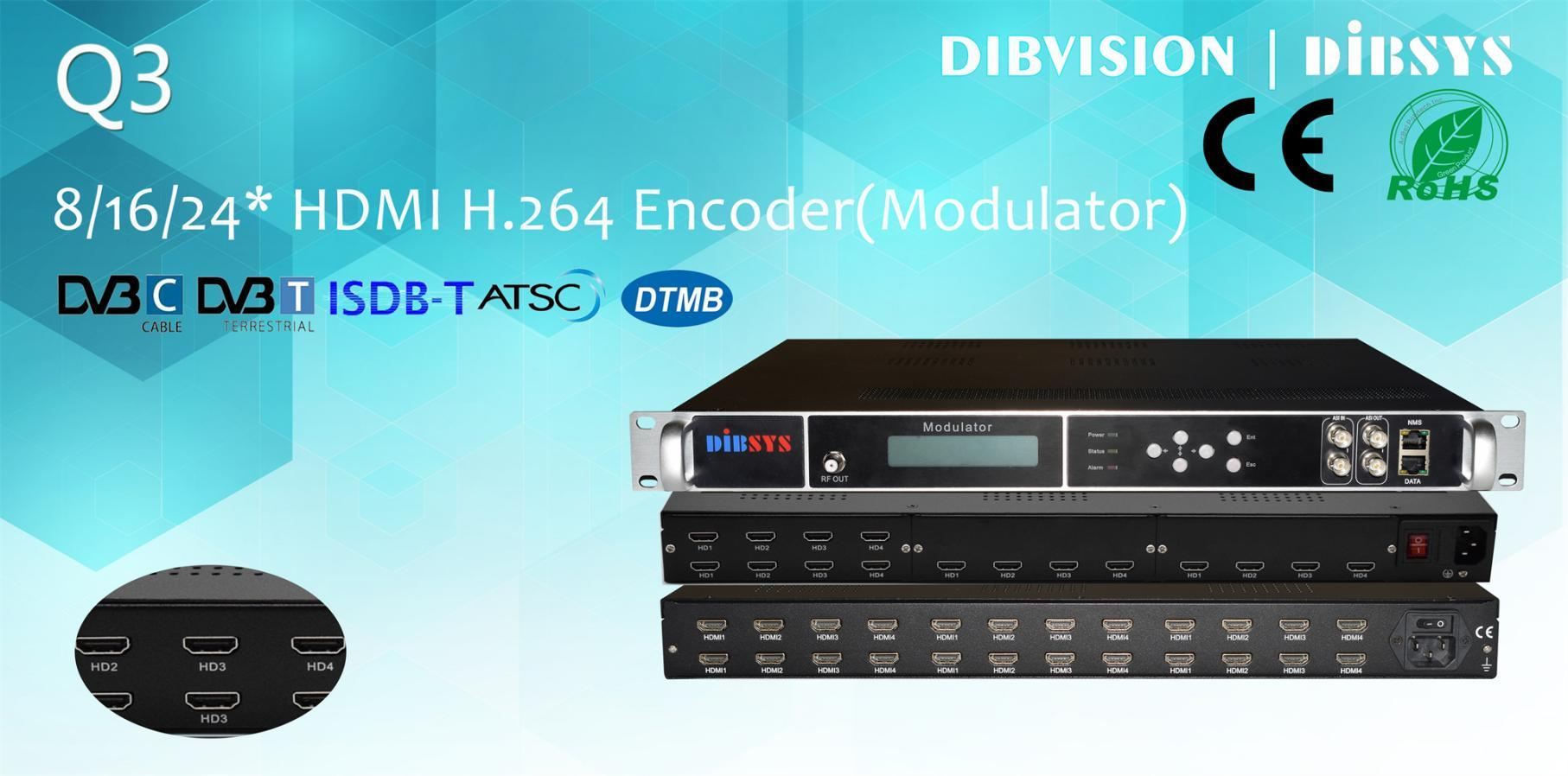

Q3 HDMI H264 Encoder

Description

Q3 HDMI H264 Encoder

Q3 This platform, with H.264 video encoding mode by default.It supports MPTS/SPTS/ASI independent multiplexing output and IP out channel switch.With PSI/SI technology to modify the audio and video PID information of the output program, Q3 also supports to insert a NIT information table into the WEB to achieve better compatibility with the backend device.

Key Features

• Distribute Up to 8/12/16/20/24 channels of HD content over RF (DVB-T/DVB-C/DTMB/ISDB-T/ATSC) to an unlimited number of TVs
• Optional DVB-C (QAM), DVB-T (COFDM), ATSC-T, ISDB-T,DTMB Modulation, 4*Carrier RF Out, 8/16*carrier RF out (option) (16/32*carriers DVBC QAM output optional)
• In modulation Mode, support 128*IP input
• Two separate ASI input for External TS Multiplexing
• Simulaneously MPTS and SPTS over UDP/RTP IP out
• Audio encoding: MPEG-1 Layer 2, Optional: AAC-LC,AAC-HE v1, AAC-HE v2
• Audio gain adjustment supported
• 4 separate multiplexing and Up-converter modulating adjacent carrier out
• Selectable the Value of PCR PID same as Video PID
• CBR mode supported
• Selectable LOGO,QR code,OSD insertion for every, All or Each module of local channel
• Support TTL editing
• LCN (Logical Channel Number) support
• PSI/SI editing & inserting
• PID Remapping & Filtering
• Support PCR correct and PCR interval adjusting
• Easy-to-Use System Management via Web
• passed the EU CE&RoHS certification

More details,you can download the datasheet check:Q3 Multi-Channel HDMI H.264 Encoder(Option Modulator)
