Q7 HDMI H265/H264 Encoder

Description

Q7 with H.264/H.265 video encoding mode by default, supports MPTS/SPTS/ASI independent multiplexing output and IP out channel switch.

Key Features

• Distribute Up to 8/12/16/20/24 channels of HD content over RF (DVB-T/DVB-C/DTMB/ISDB-T/ATSC) to an unlimited number of TVs
• Optional DVB-C (QAM), DVB-T (COFDM), ATSC-T, ISDB-T,DTMB Modulation, 4*Carrier RF Out, 8/16*carrier RF out (option) (16/32*carriers DVBC QAM output optional)
• support 128*IP input
• IP output support UDP/RTP, 8*MPTS and 512*SPTS in Encode mode
• H.264/H.265 video encoding format
• Two separate ASI input for External TS Multiplexing
• Audio encoding: MPEG-1 Layer 2, Optional: AAC-LC, AAC-HE v1, AAC-HE v2
• Audio gain adjustment supported
• Larger capacity: Supports H265 encoding, lower bitrate, and outputs more programs in modulation mode
• Selectable the Value of PCR PID same as Video PID
• CBR mode supported
• Selectable LOGO,QR code,OSD insertion for every, All or Each module of local channel
• Support TTL editing
• LCN (Logical Channel Number) support
• PSI/SI editing & inserting
• PID Remapping & Filtering
• Support PCR correct and PCR interval adjusting
• Easy-to-Use System Management via Web

Highlights

• Works both Coax Cable & IPTV networks: Distribute MPEG-4 AVC/HEVC/H.265 encoding to all kinds of Modulation and All SPTS/ MPTS Over UDP IP out.
• Operation via LCD Screen and Web Management : easy to read LCD color front panel that makes it easy to setup and monitor your channels, check firmware, and identify IP addresses without a computer.
• Multi-Modulation: Optional DVB-C (QAM), DVB-T (COFDM), ATSC-T, ISDB-T, DTMB Modulation (Can upgrade change it).
• Mixed input: supports simultaneous input of IP, ASI, and HDMI interfaces.
• Full bandwidth: Supports up to 768Mhz, Supports non-adjacent frequencies, and solves a small number of isolated frequency points.

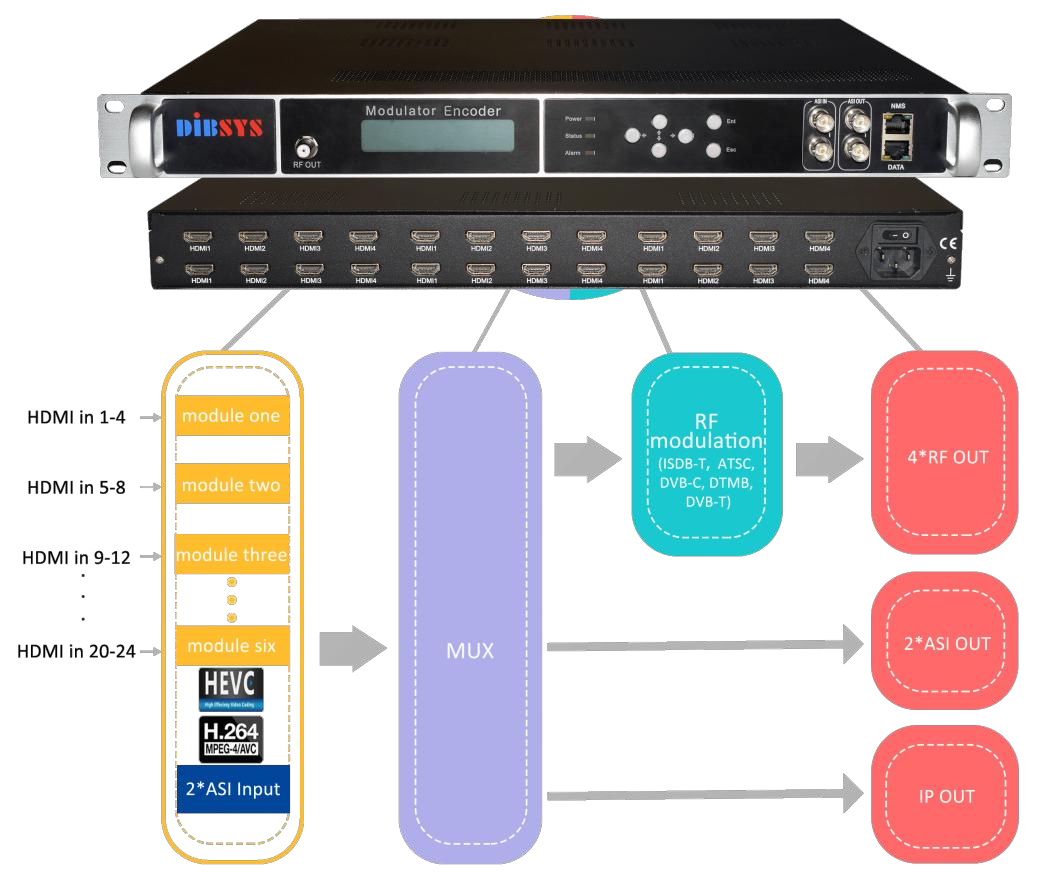

Chart
